OXFORD I-MIG SINGLE PHASE COMPACT 330-1 MIG WELDER

Add to Favourites
Price: £ 1.056,00 1056 £
Contact
Telephone: 0800 121 8802

Description

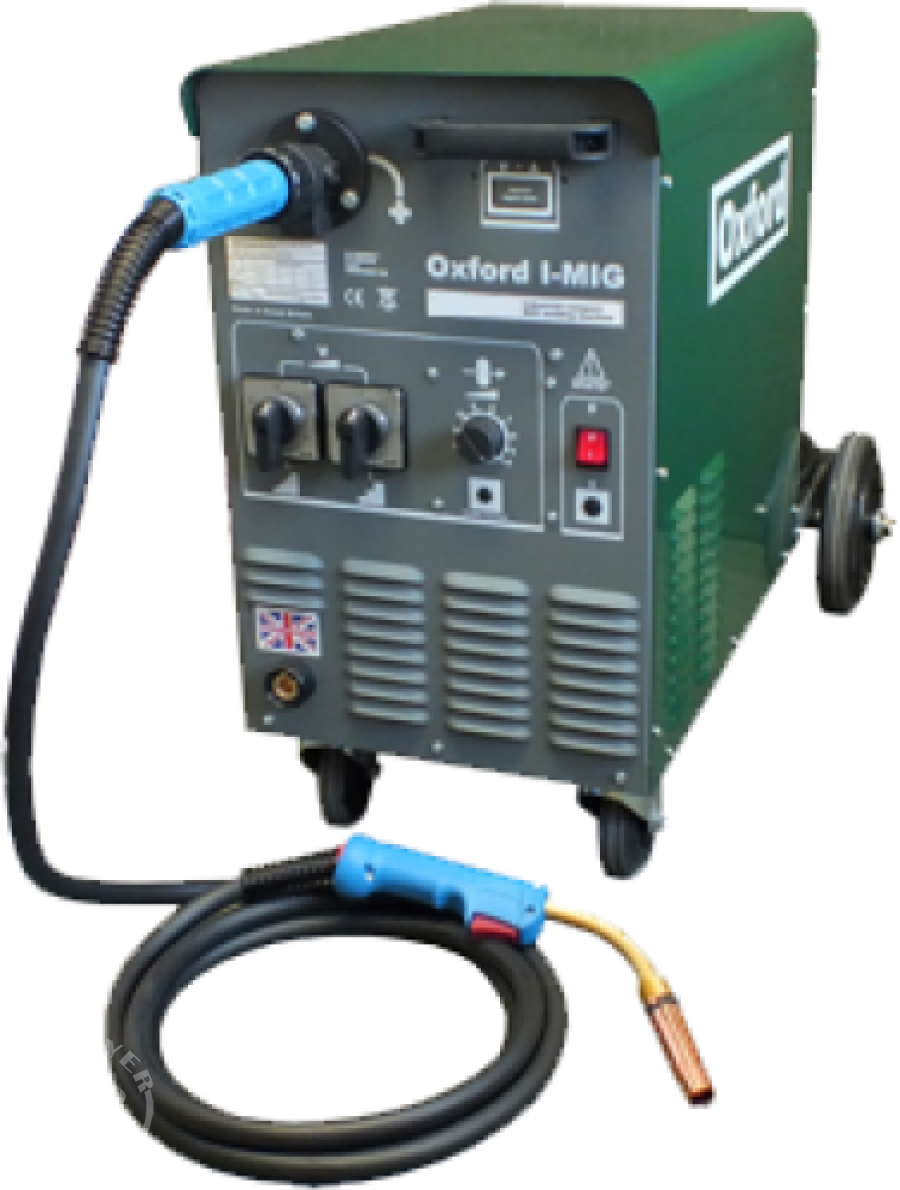

OXFORD I-MIG SINGLE PHASE COMPACT 330-1 MIG WELDER.

Weld 15MM Mild Steel
British Built
Perfect For General Fabrication & Agricultural Work
Duty cycle 60% @ 250A / 45% @ 290A
Voltage Steps - 16
Complete With Genuine Binzel Torch

Each mig welder is hand built for you in the UK so please expect 5-7 working day delivery time. - Quality takes a small amount of time.

Each machine comes complete with genuine Binzel torch & regulator

Features
British made with a no compromise approach to design & build quality.
Powder coated strong steel case with a substantial 2.5mm thick chassis fitted with quality wheels & castors.Oxford CAP+ technology ensures excellent weld starts and a very smooth stable weld with minimal spatter.
Robust gas bottle carrier & bracket with chain suitable for all sizes of bottle.
Designed for MIG welding mild steel, stainless steel, aluminium etc.
Good range of voltage steps on all models to get that perfect setting.
All metal 4 roll wire drive system with 90 watt motor ensures strong wire feeding of all sizes & types of wire.
Copper wound main transformer with overload protection for the longest life & highest efficiency.
Electrically efficient design means less electric wasted & lower operating cost.
Industry standard torch Euro connector with all brass construction.
Robust PCB to precisely control motor speed & all functions & includes adjustable burn back.
Built to comply with BS EN60974-1, BS EN50199, RoHS directive, CE marked & weee registered.
2 year complete warranty

Technical Specifications

Supply voltage - 230V Single Phase
Amperage range - 30A - 330A
Duty cycle 60% @ 250A / 45% @ 290A
Voltage steps - 16
Fuse rating slow blow - 32A
Size - 360MM X 660MM X 820MM
Total weight approx - 82KG
Wire feed system - 4 roll
MIG wire range - 0.6MM -1.2MM
Work lead (earth) - 3M
Mains input lead - 3M rubber
